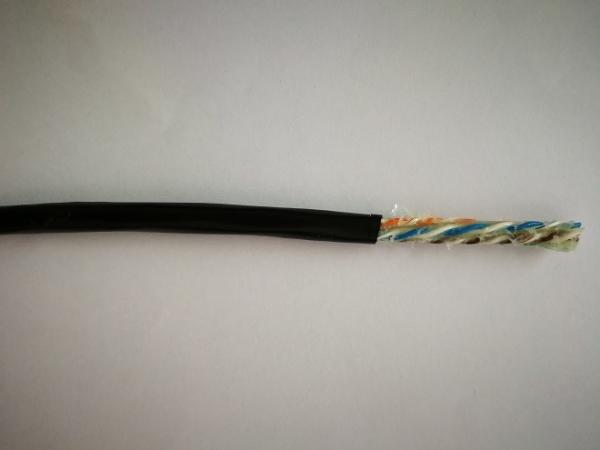

Out Door Cat5e U/Utp W/Gel, 24awg Hdpe Insulation Lldpe Jacket, Waterproof, Cmx, Uv Resistant
| 1. Conductor | Material | SOLID-Bare Copper | ||
| Nom. O.D. (mm) | 0.490+-0.005 | |||
| 2. Insulation | Material | HDPE | ||
| Diameter | 0.98±0.03mm | |||
| 4. Sheath | Thickness | 0.55±0.05 mm |
| External O.D. | 5.5±0.5 mm | |
| Surface | Clean,Frap,Satiation | |
| Material | LDPE (complies RoHS) | |
| Color | Black |
Sheath Physical Properties | Before Aging Tensile Strength (Mpa) ≥10.0 Elongation (%) ≥350 |
| Aging Period (℃×hrs) 100℃×24h×10d | |
| After Aging Elongation (%) ≥300 | |
| Cold bend (-20±2℃×4h) No visible cracks | |
Electrical Characteristics (20℃) | 1.0-100.0MHz, Characteristic impedance (Ω) 100±15 |
| 1.0-100.0MHz, Delay Shew 20℃(ns/100m) ≤45 | |
| DC Resistance 20℃(Ω/100m) max 9.5 | |
| DC Conductor Resistance Unbalance (%)max 5.0 |
Technical Performance (100m):
Frequency RL ATT NEXT PHASE DELAY
(MHz) ≥dB ≤dB ≥dB ≤ns
1 20.0 2.0 65.3 570.0
4.0 23.0 4.1 56.3 552.0
8.0 24.5 5.8 51.8 546.7
10.0 25.0 6.5 50.3 545.4
16.0 25.0 8.2 47.3 543.0
20.0 25.0 9.3 45.8 542.1
25.0 24.3 10.4 44.3 541.2
31.25 23.6 10.7 42.9 540.4
62.5 21.5 17.0 38.4 538.6
100 20.1 19.8 35.3 537.6
200 18 29.0 30.8 536.5
350 16.3 44.9 27.2 535
Frequency PSNEXT ELFEXT PSELFEXT
(MHz) ≥dB ≥dB ≥dB
1 62.3 63.8 60.8
4 53.3 51.7 48.7
8 48.8 45.7 42.7
10 47.3 43.8 40.8
16 44.2 39.7 36.7
20 42.8 37.7 34.7
25 41.3 35.8 32.8
31.25 39.9 33.9 30.9
62.5 35.4 27.8 24.8
100 32.3 23.8 20.8
200 27.8 17.7 14.7
350 26.3 12.9 9.9
